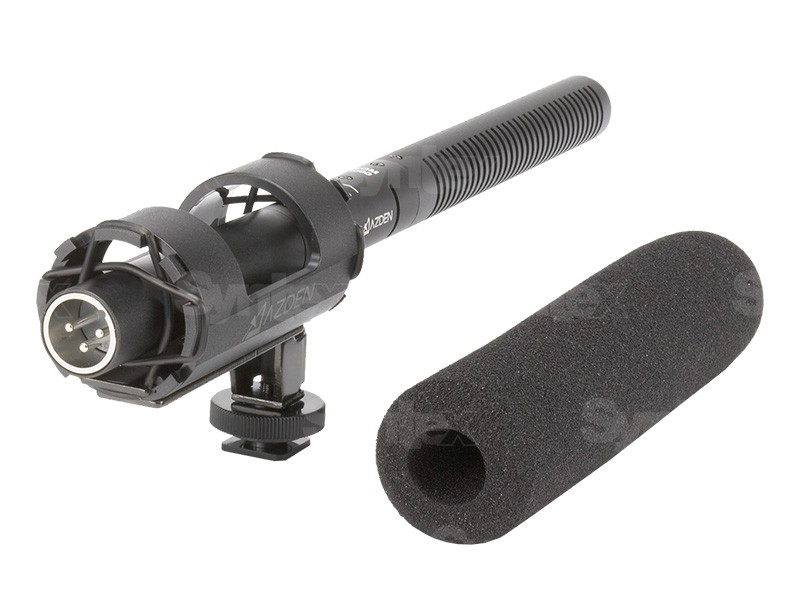

Syntex :: Azden SGM-1000 - Audio

The wide frequency response, high dynamic range and signal-to-noise ratio make the SGM-1000 suitable for applications that demand broadcast quality audio capturing. A low frequency roll-off switch eliminates noise and rumble at 200Hz. The 3-pin XLR male output connector is a low impedance connector allowing complete compatibility with 3.5mm (1/8") mini connections as well as professional XLR female inputs. The SGM-1000 can be powered with an external 12-52VDC phantom power source or a single AAA alkaline battery.

Professional Signal Response

The SGM-1000 features a wide frequency response of 80-20,000Hz and a dynamic range of 96dB. The sensitive capsule proves suitable for professional, broadcast quality audio signal reproduction.

Super-Cardioid Polar Pattern

The super-cardioid pick up pattern in most effective in attenuating off-axis audio. The result eliminates noise and ambiance at the sides of the microphone capsule.

Low Frequency Roll-Off

The low frequency roll-off switch eliminates low frequency noise and ambiance at 200Hz.

Low Impedance XLR Output

The standard 3-pin XLR male output connector is designed to output at low impedance, making it suitable for connecting to 3.5mm (1/8") mini inputs on video cameras, as well as standard balanced XLR male female inputs.

Phantom and Battery Powered

The SGM-1000 is capable of power via 12 to 52VDC phantom power source or single AAA alkaline battery.
