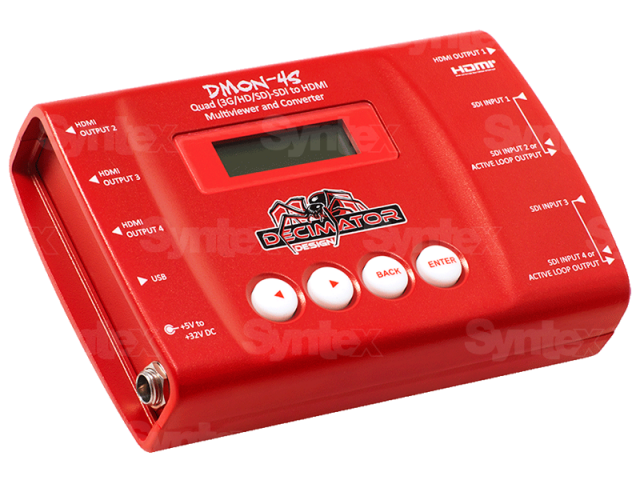

Decimator Design DMON-4S

Multi-View mode now includes 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size

Support for both 3G level A and B on the inputs.

Horizontal and/or Vertical image flipping per window

Includes 4 independent mini HDMI outputs that can each output any of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them. For example you could use the unit to have:

4 independent SDI to HDMI converters

3 independent SDI to HDMI converters with a quad-split output

2 independent SDI to 2 x HDMI converters with loop through

A single SDI or Multi-View to 4 x HDMI outputs

Inputs 2 and 4 can be individually changed to output active loop copies of inputs 1 and 2 respectively.

Multi-View mode offers:

Custom Layouts with various standard layouts

Load and restore Custom Layouts

Fast switching between inputs using Full-Screen scaling

Selection of audio from any input

16 Character UMD overlay per window with individual enables, custom positioning and size

Low latency buffering for each input allowing non-synchronous inputs

Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

Variable aspect ratios per window

The DMON-4S is a truly portable converter, that incorporates our new

This unit also includes:

USB port for control and firmware updates

Heavy duty metal box

Metal Thread Locking DC Power Socket

Power Supply, HDMI Cable and USB Cable
