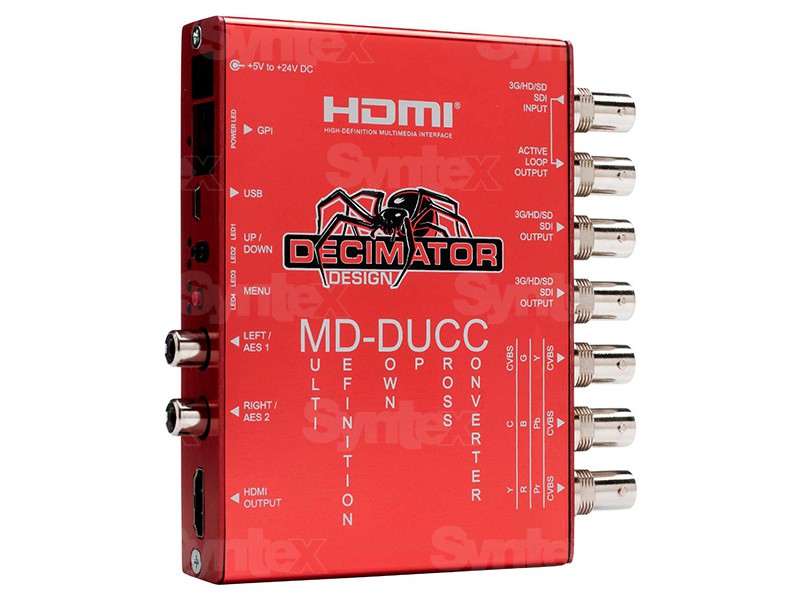

Decimator Design MD-DUCC

Multi-Definition Down Up Cross konverter, konverzia z 3G/SD/HD-SDI do 3G/SD/HD-SDI, HDMI a analógového videa s 2x AES/EBU alebo 2x analógovými audio výstupmi.

Decimator Design MD-DUCC je multi-Definition Up/Down/Cross konverter. Audio zdroj pre všetky štyri stereo páry v HDMI výstupe môže byť zvolený z ôsmich stereo párov dostupných v SDI vstupe. Keď je aktívny scaler, audio zdroj pre všetkých osem stereo párov v SDI výstupe môže byť zvolený z ôsmich stereo párov dostupných na SDI vstupe.

Features:

• Auto detects 3G, HD or SD (26 formats in total)
• Full 10-bit data path and multipoint interpolation
• Professional motion-adaptive de-interlacing
• True Down Up Cross Conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no  matter what the input format is
• Complete 16:9, 14:9 and 4;3 Aspect Ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD nad SD to SD conversions
• Full 16-Channel Audio Metering
• Adjustable Graticules Generator
• Text Overlays
• HDMI Output
• Selectable analogue video with 3 x CVBS / YPbPr / RGB / CVBS & YC
• 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
• GPI on RJ-45 for Tallies
• 3G/HD/SD-SDI Active Loop-Through Output
• De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
• LEDs for status and buttons for basic configuration
• USB port for control and firmware updates
• Locking DC Power Socket
• The following is also included with the unit: power supply, HDMI cable, USB cable and Mounting Bracket
