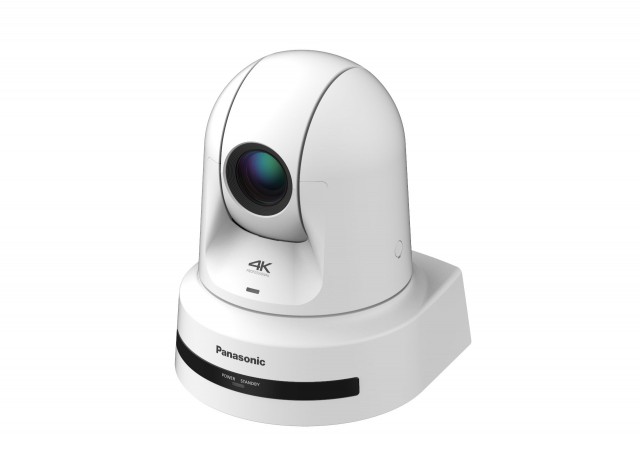

Spoločnosť Panasonic predstavila päť nových modelov inštalačných kamier na prvý štvrťrok 2022 vrátane modelov 4K AW-UE80W/K, AW-UE50W/K, AW-UE40W/K a AW-UE20W/K, ako aj variantu HD AW-HE20W/K. V predaji od 1. štvrťroka 2022.
Spoločnosť Panasonic predstavila päť nových modelov inštalačných kamier na prvý štvrťrok 2022 vrátane modelov 4K AW-UE80W/K, AW-UE50W/K, AW-UE40W/K a AW-UE20W/K, ako aj variantu HD AW-HE20W/K. V predaji od 1. štvrťroka 2022.
Nové produkty sú vybavené inovatívnym motorom s priamym pohonom, ktorý zabezpečuje tichý (NC25 alebo tichší) a plynulý pohyb kamery vo vertikálnej aj horizontálnej osi. Varianty AW-UE40, AW-UE50 a AW-UE80 sú tiež vybavené transfokátorom s 24-násobným priblížením, uhlom záberu 74,1° a optickou stabilizáciou obrazu. Podporujú aj napájanie PoE na jednoduchú inštaláciu s prenosom A/V signálu, príkazov diaľkového ovládania a napájania cez jediný ethernetový kábel; okrem IP sú k dispozícii aj HDMI a 3G-SDI (UE80 a UE50). Samozrejmosťou je podpora najnovších protokolov IP videa vrátane. NDI|HX 2 (UE80/UE50/UE40) a (v prípade AW-UE80) Full NDI s dátovým tokom 100 Mb/s. Podporované sú aj protokoly SRT a RTMP/RTMPS a model AW-UE80 pridáva štandard FreeD na integráciu kamery do systémov AR a VR.
Základné modely AW-UE20W/K (do 4Kp30) a AW-HE20W/K (HD) sú určené predovšetkým pre firemný sektor, domáce kancelárie a vzdelávanie. Sú vybavené širokouhlým objektívom (71°) s 12-násobným priblížením, kompatibilitou s najnovšími protokolmi IP a rozhraniami SDI, HDMI, USB a IP.
Celý ekosystém kamier PTZ spoločnosti Panasonic zahŕňa aj softvér PTZ Control Center, voliteľné hardvérové diaľkové ovládače, ako aj voliteľný softvér na automatické sledovanie účinkujúcich vrátane detekcie tváre.
1 PTZ Camera
Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) | ||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as "night mode") | ||||||||||||||||||||||||
Output Format | - | ||||||||||||||||||||||||
Color separation optical system | 1MOS | ||||||||||||||||||||||||
Focus | Switching between auto and manual | ||||||||||||||||||||||||
Focus Distance | Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft) | ||||||||||||||||||||||||
Gamma | HD / Normal / Cinema1 / Cinema2 / Still Like | ||||||||||||||||||||||||
Scene File | - | ||||||||||||||||||||||||
Synchronization System | Internal/External synchronization (BBS/Tri-level sync) | ||||||||||||||||||||||||
Pan/Tilt Operation Speed | Speed range: 0.08°/s to 60°/s (Normal mode)*8 • 3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s |
||||||||||||||||||||||||
Quietness | NC25 or less | ||||||||||||||||||||||||
Electronic Shutter Speed | - | ||||||||||||||||||||||||
Tilting Range | -30°to 90°*9 | ||||||||||||||||||||||||
Imaging Sensors | 1/2.5-type MOS×1 | ||||||||||||||||||||||||
Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4 | ||||||||||||||||||||||||
Chroma Amount Variability | OFF, -99 % to 99 % | ||||||||||||||||||||||||
Ambient Operating Humidity | 20 % to 90 % (no condensation) | ||||||||||||||||||||||||
Finish | AW-UE80W: WhiteAW-UE80K: Black | ||||||||||||||||||||||||
Image Resolution | 1920×1080, 1280×720, 640×360, 320×180 | ||||||||||||||||||||||||
Panning range | ±175° | ||||||||||||||||||||||||
Camera Unit | - | ||||||||||||||||||||||||
Mass | Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket),Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket) | ||||||||||||||||||||||||
INPUT | - | ||||||||||||||||||||||||
OUTPUT | - | ||||||||||||||||||||||||
INPUT/OUTPUT | - | ||||||||||||||||||||||||
Installation Method | Stand-alone (Desktop) or suspended (Hanging)*7 | ||||||||||||||||||||||||
Camera/pan-tilt head control | - | ||||||||||||||||||||||||
Controller Supported | AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1, 2, AK-HRP1005*1, 2, AK-HRP1015*2, AK-HRP250*2 | ||||||||||||||||||||||||
Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | ||||||||||||||||||||||||
Dimensions (W x H x D) (mm) | 170.0 mm x 211.0 mm x 171.0 mm | ||||||||||||||||||||||||
Dimensions (W x H x D) (inch) | 6.693 inches x 8.307 inches x 6.732inches | ||||||||||||||||||||||||
PoE++ | IEEE802.3bt compliant: DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported) | ||||||||||||||||||||||||
Conversion Lens | Not supported | ||||||||||||||||||||||||
Angle of View Range | Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele) | ||||||||||||||||||||||||
Syncro Scan | - | ||||||||||||||||||||||||
Supported operating systems and web browsers | - | ||||||||||||||||||||||||
IP Streaming | - | ||||||||||||||||||||||||
Image Streaming Mode | JPEG(MJPEG), H.264, H.265, NDI®|HX version 2*11, 12, 13 (H.264), High Bandwidth NDI® | ||||||||||||||||||||||||
Image Transmission setting (JPEG) | Frame rate: Maximum 30fpsImage quality (Fine / Normal) | ||||||||||||||||||||||||
Image Transmission Setting (H.264) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
||||||||||||||||||||||||
Image Transmission Setting (H.265) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
||||||||||||||||||||||||
Audio Compression Type | AAC-LC, 48 kHz, 16 bit, 2 ch | ||||||||||||||||||||||||
Pan Tilt Head Unit | - | ||||||||||||||||||||||||
Supported protocol | - | ||||||||||||||||||||||||
Note | *1:Discontinued Model*2:Will be supported in the future*3:Can be set in 1 dB step increments.*4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.*5:STP (Shielded Twisted Pair) is recommended.*6:Use Category 6 or higher when transmitting 4K video.*7:To ensure safety, the unit must be secured using the mount bracket supplied.*8:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.*9:The main unit may appear in the video depending on the pan/tilt position.*10:Supported OS indicated are for browsers current as of August 2020. See “Service and Support / PASS” for the latest information on browser support.*11:NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.*12:NDI® is a registered trademark of NewTek, Inc. in the United States.*13:In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE80 supports NDI®|HX version 2 and Full HD output.*14:Simultaneous operation with the AW protocol is not possible.*15:Non-synchronous with SDI-OUT | ||||||||||||||||||||||||
Other Function | - | ||||||||||||||||||||||||
Tally LED display color | red / green | ||||||||||||||||||||||||
NDI Support | NDI®|HX version 2: Included as standardHigh Bandwidth NDI®: Included as standard*14 | ||||||||||||||||||||||||
Mic/line input | AAC compatibility (compatible with IP only)Φ3.5 mm stereo mini jack• During MIC inputInput level: -40 dBV (0 dB=1 V/Pa, 1 kHz)Supply voltage: 2.5 V±0.5 V (plug-in power compatible)"• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)Approx. 20 kΩ (when plug-in power is turned OFF)"• During LINE inputInput level: -10 dBVInput impedance: Approx. 3 kΩ• Input volume variable range: -36 dB to 12 dB (3 dB step)• Embedded audio output level: -12 dBFS• Sampling frequency: 48 kHz• Quantization bit rate: 24 bit (SDI, HDMI), 16 bit (IP) | ||||||||||||||||||||||||
IP connecting cable | • If you have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft)• If you don't have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft) | ||||||||||||||||||||||||
AW protocol connecting cable | LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft) | ||||||||||||||||||||||||
Image Stabilization | OIS 2-axisMENU switching: Select between Off/O.I.S.(STABLE)/O.I.S.(PAN/TILT) | ||||||||||||||||||||||||
Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||||||||||||||||||||||||
Electronic Shutter Speed | 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||||||||||||||||||||||||
Electronic Shutter Speed | 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||||||||||||||||||||||||
Electronic Shutter Speed | 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||||||||||||||||||||||||
Input/Output Connector | LAN | LAN terminal for IP control (RJ-45) | ||||||||||||||||||||||||
Input/Output Connector | RS-422 | CONTROL IN RS422A(RJ-45) | ||||||||||||||||||||||||
Windows | Windows 10 Windows® Internet Explorer® 11(32 bit / 64 bit) Microsoft Edge Google Chrome |
||||||||||||||||||||||||
Mac | Mac OS v11.0.1 / Safari 14.01 Mac OS v11.0.1 / Google Chrome Mac OS v10.15 / Google Chrome Mac OS v10.14 / Google Chrome |
||||||||||||||||||||||||
Video Output | HDMI | HDMI 2.0 connector, 4:2:2/10bit• HDCP is not supported.• Viera Link is not supported | ||||||||||||||||||||||||
Supported protocol | IPv4 | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP/RTP, MPEG2-TS, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT | ||||||||||||||||||||||||
Supported protocol | IPv6 | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTSP/RTP, MLD, ICMP, ARP, SRT | ||||||||||||||||||||||||
Output Formats | High Bandwidth NDI® : 【HD】1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p | ||||||||||||||||||||||||
New Functions | - | ||||||||||||||||||||||||
Electronic Shutter Speed | 23.98p/24p | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||||||||||||||||||||||||
Synchro Scan | 59.94p/59.94i | 60.0 Hz to 7200 Hz | ||||||||||||||||||||||||
Synchro Scan | 29.97p | 30.0 Hz to 7200 Hz | ||||||||||||||||||||||||
Synchro Scan | 23.98p/24p | 24.0 Hz to 7200 Hz | ||||||||||||||||||||||||
Synchro Scan | 50p/50i | 50.0 Hz to 7200 Hz | ||||||||||||||||||||||||
Synchro Scan | 25p | 25.0 Hz to 7200 Hz | ||||||||||||||||||||||||
Output Format | SDI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p | ||||||||||||||||||||||||
Output Format | HDMI | 4K | 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native) | ||||||||||||||||||||||||
Output Format | HDMI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p | ||||||||||||||||||||||||
Video Output | 3G-SDI OUT | SMPTE292M/424M/ 75 Ω(BNC×1)• Level-A/Level-B supported | ||||||||||||||||||||||||
Image Resolution | NDI®|HX version 2 | 1920x1080, 1280x720 | ||||||||||||||||||||||||
Audio Compression Type | High Bandwidth NDI® | AAC-LC, 48 kHz, 2 ch | ||||||||||||||||||||||||
Audio Compression Type | NDI®|HX version 2 | AAC-LC, 48 kHz, 16 bit, 2 ch | ||||||||||||||||||||||||
F-Number Display | Displayed on the AW-RP150GJ and AW-RP60GJ sides | ||||||||||||||||||||||||
Menu Display on IP Video | Supported*15 | ||||||||||||||||||||||||
Power LED | ON/OFF control | ||||||||||||||||||||||||
Tripod Screw Penetration Measures | Possible | ||||||||||||||||||||||||
Pan/Tilt Mechanical Method | New Direct Drive System | ||||||||||||||||||||||||
|
The lens surface faces backward when standing by (ON/OFF)* Default is OFF | ||||||||||||||||||||||||
VR Compatibility | Supports FreeD protocol | ||||||||||||||||||||||||
Android | Android OS Google Chrome |
||||||||||||||||||||||||
iPhone / iPad | iOS Safari iPadOS |
||||||||||||||||||||||||
Image Transmission Setting (High Bandwidth NDI®) | Transimission Type: TCP/UDP, Unicast/Multicast Max Bit Rate: 250 Mbps |
||||||||||||||||||||||||
Image Transmission Setting (NDI®|HX version 2) | Transimission Type: TCP/UDP, Unicast/Multicast |
Výrobca: | Panasonic |
Kategória: | PTZ |
Veľkosť snímača kamery | 1/2.5" |
Rozlíšenie | 4K UHD |
Optický Zoom | 24x |
Bajonet | integrovaný objektív |
Výstup | HDMI |
Výstup | NDI |
Výstup | 3G SDI |
Výstup | IP |
Vyhotovenie kamery | PTZ |
FPS | 4K 60fps |
Min. ohnisková vzdialenosť | 4.1mm |
Max. ohnisková vzdialenosť | 98.9mm |
Ďalšie funkcie | PTZ |
Ďalšie funkcie | Streaming |
Ďalšie funkcie | PoE |
Ďalšie funkcie | NDI / NDI HX |
Ďalšie funkcie | FreeD |
Ďalšie funkcie | SRT |
Ovládací protokol | NDI |
Ovládací protokol | RS-422 |
