Rack-mountable receiver with wide bandwidth

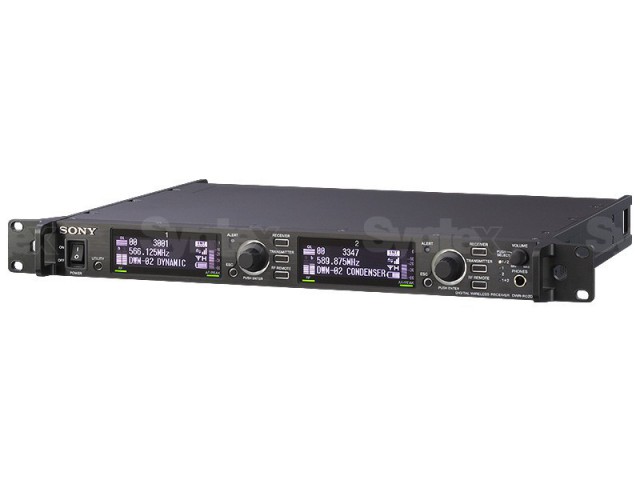

The DWR-R02D is a two-channel rack-mountable (1U-size) receiver that, as part of the DWX Series digital wireless microphone system, works seamlessly with Sony digital wireless transmitters, such as the DWT-B01/E, and digital wireless microphones, such as the DWM-02. The receiver operates with a wide bandwidth up to 72Mhz, giving users a higher probability to find unoccupied frequencies in congested metropolitan areas.

Ideal for a wide range of applications

Ideal for a range of applications including live concert, theatre, opera, broadcast studio, news gathering, field production, and sound recording, the DWR-R02D offers a truly digital wireless microphone platform. It combines advanced digital technologies, analogue microphone expertise, wireless audio transmission technologies, and an enviable reputation for stability.

Compatible with all DWX Series transmitters and microphones

Part of the DWX Series digital wireless microphone system, the DWR-R02D works seamlessly with Sony’s digital wireless transmitters, such as the DWT-B01/E, and digital wireless microphones, such as the DWM-02.

Transmits high quality digital audio

The digital wireless microphone system transmits and receives high-quality 24 bit/48 kHz digital audio in a specific frequency bandwidth. Using Sony’s original WiDIF-HP codec, the system delivers a wide dynamic range of more than 106 dB, a wide frequency response of 20 Hz to 22 kHz, and an excellent transient response.

Secure and stable wireless transmission

The DWX Series enables highly stable wireless transmission that is extremely tolerant to unwanted interference. In addition, the system transmits and receives digitally modulated and encrypted data to minimise the risk of interception, providing highly secure transmission and reception.

Supports a variety of output functions

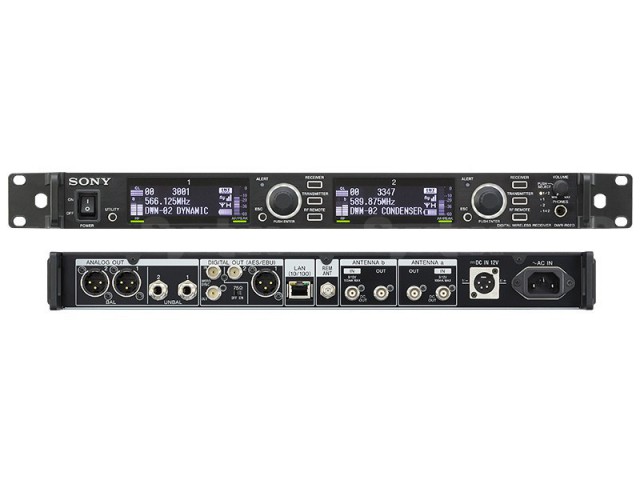

The DWR-R02D supports electric guitar and bass amplifier connections by TS Phone output with ATT control function. It includes XLR and BNC output for AES digital output, and GND lift function for analogue BAL output.

Flexible power options

The 100V to 240V AC and 12V DC power enables users to operate in a global power environment.

Remote control of transmitter functions from the receiver

Input attenuation, RF frequency selection, RF power output, Audio Low-pass cutoff frequency and transmitter Sleep Mode can all be controlled remotely from the digital wireless receiver.
