Univerzálny XLR vysielač systému UWP-D
Univerzálny XLR vysielač systému UWP-D

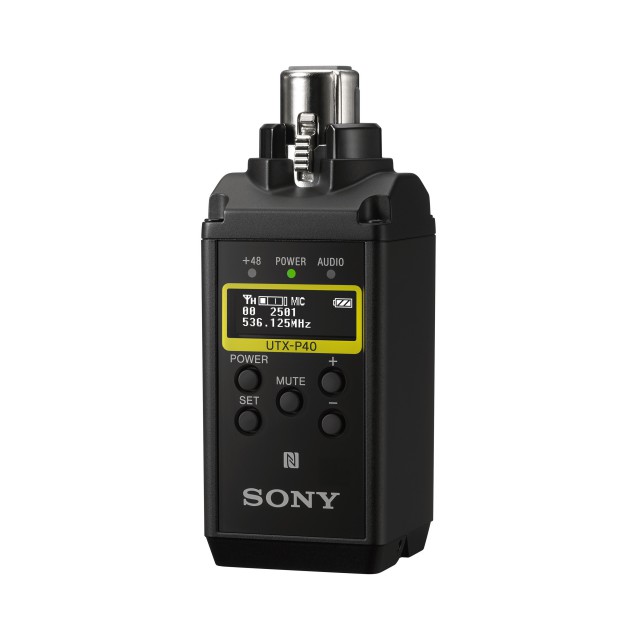

The Sony UTX-P40 is a wireless plug-on transmitter compatible with the URX-P40 camera-mount receiver. Compact and lightweight, with a robust, all-metal construction, this plug-on is well suited for tough operating conditions. It provides up to 6 hours of operation on two AA batteries, with a selectable 5/40mW RF power output and a transmission range up to 330'.
The UTX-P40 can be attached to a handheld microphone of your choice for man-on-the-street interviews, or to a shotgun mic for wireless booming (both types of mics are available separately). The plug-on provides 48V phantom power, giving you the option to use a condenser microphone. The transmitter offers a 72 MHz bandwidth with 2772 selectable UHF frequencies.
The UTX-P40 is backward-compatible with Sony WL-800 and UWP Series systems.
Unlike traditional analog wireless systems, the UWP-D supplements its proven analog UHF transmission technology with a proprietary digital audio processing. Transient sounds and consonants are reproduced with greater accuracy, resulting in clear, natural sound that’s intelligible and nuanced.
Press and hold the NFC/Sync button on the receiver and it scans for the cleanest RF channel. Simply hold the transmitter next to the receiver; it automatically syncs up and you're good to go!
Unlike purely digital systems, the UTX-P40 allows you to send a single mic to multiple cameras for broadcast applications. Fast NFC communication makes setup for multiple receivers a breeze.
Auto-Gain mode saves you the time and aggravation of setting and managing the input level on the transmitter. It uses a limiter to help prevent distortion, great when the loudness of the presenter’s voice is unknown.
The +15 dB Gain Volume-Boost mode boosts the mic gain by 15 dB to compensate for situations when the mic is not close enough to the presenter’s mouth and the audio level is insufficient.
Manual input-level setting is also available.
The unit features an easy-to-read OLED display. The quick response of the display lets you see the operating conditions clearly and accurately in real time, even in bright sunlight.
Two levels of DSP filtering help remove the artifacts caused by occupancy sensors used in modern "green" buildings to turn off lights when people leave a room.
Two AA batteries (alkaline or NiMH rechargeable type) power the transmitter for up to 6 hours.
The unit can also be powered through its USB port, allowing it to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.
A battery count-up timer allows for accurate reading of battery running time to minute accuracy.
The UWP-D transmitter can be used with a UWP Series or WL-800 Series receiver. A UWP Series or WL-800 Series transmitter can be used with a UWP-D receiver.
Oscillator Type
Crystal-controlled PLL synthesizer
Carrier Frequencies
21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
RF Output Power
40 mW/5 mW selectable (UC, U, LA models)
30 mW/5 mW selectable (CE, CN models)
10 mW/2 mW selectable (J, E, KR models)
Input Connector
XLR-3-11C type (female)
Reference Audio Input Level
–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
Audio Attenuator Adjustment Range
0 dB to 48 dB (3 dB steps)
Frequency Response
23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (Typical) (J model)
Signal-to-Noise Ratio
60 dB (–60 dBV, 1 kHz input)
102 dB (GAIN MODE set to AUTO GAIN, max.)
96 dB (GAIN MODE set to NORMAL, max.)
Distortion
0.9% or less (–60 dBV, 1 kHz input)
Audio Delay
Approx. 0.35 ms
Tone Signal Frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz
Display
OLED
Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)
Battery Life*
During +48V OFF:
Approx. 7 hours with output power of 40 mW (UC, U, LA models)
Approx. 8 hours with output power of 30 mW (CE, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models)
During +48V ON and ECM-673 connection:
Approx. 6 hours with output power of 40 mW (UC, U, LA models)
Approx. 6 hours with output power of 30 mW (CE, CN models)
Approx. 7 hours with output power of 10 mW (J, E, KR models)
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F)
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)
Storage/Transport Temperature
–20 °C to +55 °C (–4 °F to +131 °F)
Dimensions
38 × 98 × 38 mm (1 1/2 × 3 7/8 × 1 1/2 in.) (W / H / D) (including the audio input connector)
Mass
Approx. 139 g (4.9 oz) (excluding batteries)
