Rozširujúci modul pre kameru PXW-FX9 umožňujúci kamere posielať 16-bitový RAW signál, pripojiť bezdrôtový dvojkanálový slot-in prijímač či posielať video stream cez dvojicu 4G USB adaptérov alebo cez LAN kábel.
Rozširujúci modul pre kameru PXW-FX9 umožňujúci kamere posielať 16-bitový RAW signál, pripojiť bezdrôtový dvojkanálový slot-in prijímač či posielať video stream cez dvojicu 4G USB adaptérov alebo cez LAN kábel.
Enhanced operability with advanced networking, wireless audio* and RAW output**
Connecting directly to the PXW-FX9 camera with no cables needed, the XDCA-FX9 extension unit provides convenient additional features to enhance shooting convenience and flexibility.

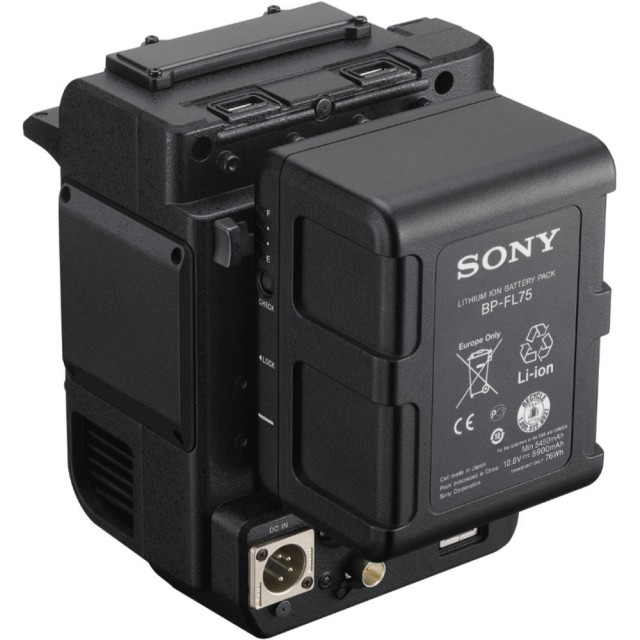

The XDCA-FX9 allows easy fitting of BP-GL and BP-FL series batteries, extending camera operating times during the most demanding shoots.

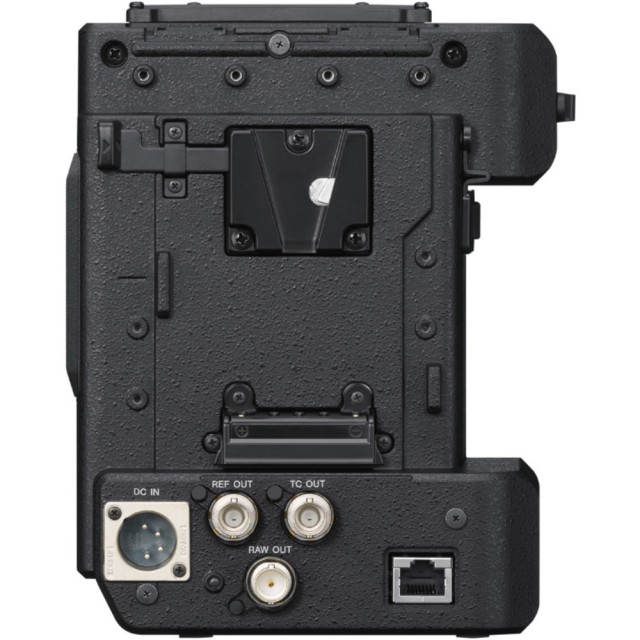

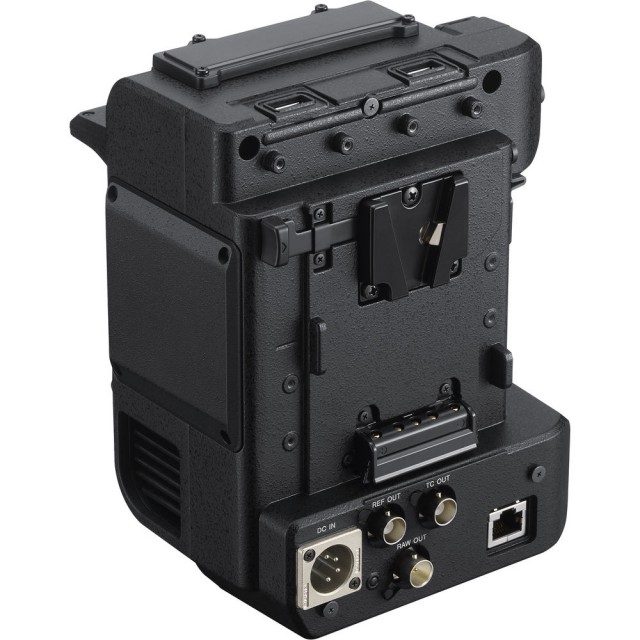

Attaching quickly and easily to the rear of the PXW-FX9 via a MultiPin connector, the XDCA-FX9 provides advanced networking capabilities for streaming or file transfer via Ethernet or dual link cellular connection. It also allows the easy addition of high quality wireless audio via a wireless receiver slot.* Additional output connectors including timecode and D-tap are also provided.
16-bit RAW signals can be output directly from the XDCA-FX9 using a third-party external recorder.**
* Requires PXW-FX9 future firmware release for wireless audio and RAW output.
Seamless attachment, superb ergonomics
The XDCA-FX9 attaches directly to the PXW-FX9 via MultiPin connector, with no additional cabling required. Shooting time is extended by compatibility with Sony BP-GL and BP-FL series batteries. When using larger lenses, the extension unit balances any possible front heaviness while increasing stability when the camera is shoulder mounted.
Advanced network capabilities
The built-in networking capabilities of the PXW-FX9 enable streaming and file transfer via Wireless LAN. The XDCA-FX9 adds QoS Streaming with Dual Link connection via multiplexing of two cellular networks or Ethernet connection to improve image quality and stability.
Wireless audio support*

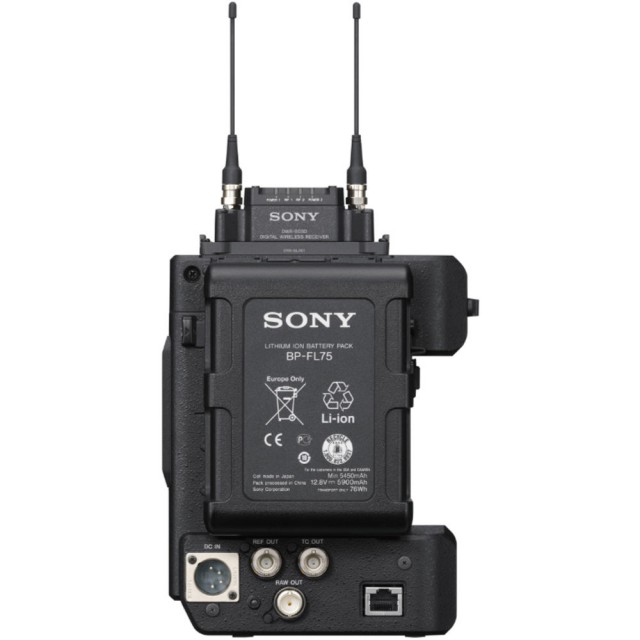

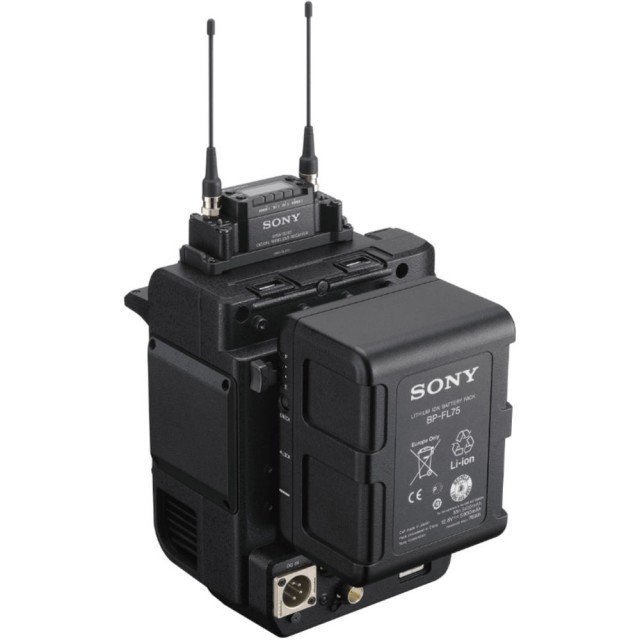

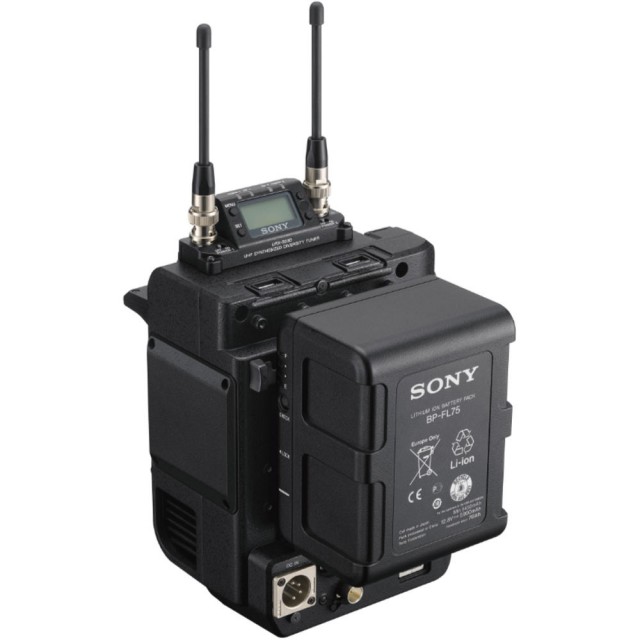

Ideal for field-based news production, the extension unit adds a wireless audio receiver slot for compatibility with receivers such as DWX series and URX series.
* Requires PXW-FX9 future firmware release.
16-bit RAW recording with external recorder**
Adding the XDCA-FX9 extension unit to the PXW-FX9 allows recording of 16-bit RAW footage from the camera on a third-party RAW recorder (available separately). RAW data is output directly via the extension unit’s RAW interface.
** Requires PXW-FX9 future firmware release. Limited to 10-bit recording during 120fps high frame rate shooting within Super35 image circle.
Camera Interface | Not Specified by Manufacturer |
Supported Video Formats | Not Specified by Manufacturer |
DC Input | Not Specified by Manufacturer |
Battery Connector | 1 x V-Mount |
Power Input | 1 x 4-Pin XLR |
DC Output | 1 x 4-Pin Hirose 1 x D-Tap |
Other Connectors | 1 x Timecode Output 1 x Reference Output |
